VM -A Series

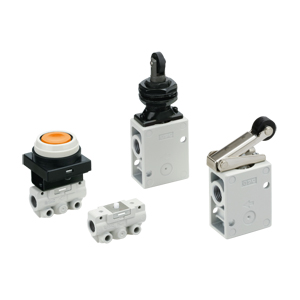

SMC 2·3포트 메커니컬 밸브 VM-A Series

  • 경량화 VM100 : 60g(종래 95g), VM200 : 90g(종래 111g)
  • 종래품과의 설치 호환성 있음
  • 진공 사용 가능(VM100) : 100kPa~1MPa(VM200은 0~1MPa)
  • 설치방법 : 브라켓 장착(New), 아래설치(New), 횡설치, 패널 설치
  • 미니어처 표시등 부착 에어의 유무를 확인 가능

  • 시리즈 포트 수 밸브 구조 배관방향 관접속구경
    VM100-A 2·3포트 포핏 횡배관, 밑배관 1/8(횡배관)
    M5×0.8(밑배관)
    VM200-A 2·3포트 포핏 횡배관 1/4


  • 4c3e8680b6669bc985b20067b4812cae_스크린샷_12-6-2024_15829_.jpeg
  • VM120-01-00A / VM130-01-001A / VM121-01-00A / VM131-01-00A /
  • VM121-01-01A / VM131-01-01A / VM121-01-01SA / VM131-01-01SA /
  • VM121-01-02A / VM131-01-02A / VM121-01-02SA / VM131-01-02SA /
  • VM120-01-05A / VM130-01-05A / VM120-01-06A / VM130-01-06A /
  • VM120-01-06SA / VM130-01-06SA / VM120-01-07A / VM130-01-07A /
  • VM120-01-07SA / VM130-01-07SA / VM120-01-08A / VM130-01-08A /
  • VM120-01-30(R,B,G,Y)A / VM130-01-30(R,B,G,Y)A / VM120-01-32(R,B,G,Y)A / VM130-01-32(R,B,G,Y)A /
  • VM120-01-33A / VM130-01-33A / VM120-01-34 (R,B,G,Y)A / VM130-01-34(R,B,G,Y)A /
  • VM120-01-36A / VM130-01-36A / VM131-01-35(R,B,G,Y)A / VM151-01-35(R,B,G,Y)A /
  • VM122-M5-00A / VM132-M5-00A / VM123-M5-00A / VM133-05-00A /
  • VM123-M5-01A / VM133M5-01A / VM123-M5-01SA / VM133-M5-01SA /
  • VM123-M5-02A / VM123-M5-02A / VM123-M5-02SA / VM133-M5-02SA /
  • VM122-M5-05A / VM132-M5-05A / VM122-M5-06A / VM132-M5-06A /
  • VM122-M5-06SA / VM132-M5-06SA / VM122-M5-07A / VM132-M5-07A /
  • VM122-M5-07SA / VM132-M5-07SA / VM122-M5-08A / VM132-M5-08A /
  • VM122-M5-30(R,GB,G,Y)A / VM132-M5-30(R,B,G,Y)A / VM122-M5-32(R,B,G,Y)A/
  • VM132-M5-32(R,B,G,Y)A / VM122-M5-33A / VM132-M5-33A / VM122-M5-34(R,B,G,Y)A /
  • VM132-M5-34(R,B,G,Y)A / VM122-M5-36A / VM132-M5-36A /VM133-M5-(R,B,G,Y)A /
  • VM153-M5-35 (R,B,G,Y)A / VM220-02-00A / VM230-02-00A / VM220-02-01A / VM230-02-01A /
  • VM220-02-01SA / VM230-02-01SA / VM220-02-02A / VM230-02-02A / VM220-02-02SA /
  • VM230-02-02SA / VM220-02-05A / VM230-02-05A / VM220-02-06A / VM230-02-06A /
  • VM220-02-06SA / VM230-02-06SA / VM220-02-07A / VM230-02-07A / VM220-02-07SA /
  • VM230-02-07SA / VM220-02-08A / VM230-02-08A / VM220-02-30(R,B,G,Y)A / VM230-02-30(R,B,G,Y)A /
  • VM220-02-32(R,B,G,Y)A / VM230-02-32(R,B,G,Y)A / VM220-02-33A / VM230-02-33A /
  • VM220-02-34)R,B,G,Y)A / VM230-02-34(R,B,G,Y)A / VM220-02-36A / VM230-02-36A /
  • VM230-02-35(R,B,G,Y)A / VM250-02-35(R,B,G,Y)A / VM220-02-40A / VM230-02-40A





    •
